Torsion Shaft
Kit

With the Torsion Shaft plant students can explore the effect of a rotary flexible member in the system.​

Learning Objectives Include

  • ​Modeling and simulation of dynamic systems

  • System identification and model validation

  • 1, 2, or 3 DOF plants

  • Principles of vibrations

  • Collocated and non-collocated controls

  • PID control

  • Discrete State-Space controller

torsion shaft new.png

Features:

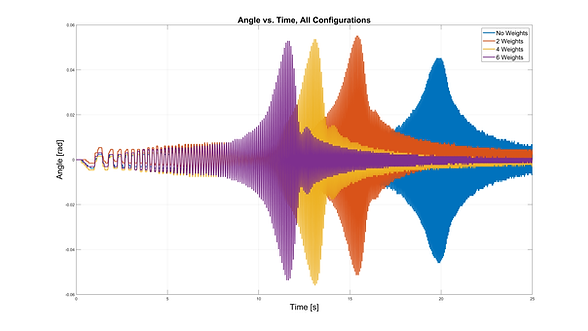

Sample plot from 1DOF Torsion Shaft Experiment


Sample plot from 1DOF Torsion Shaft Experiment


We offer turnkey and plant only options:

Turnkey kit

Includes the plant, a DAQ, amplifier, EStop button, power supply.


Plant only

User provides DAQ, amplifier, Estop button, power supply and computer.

EMB-KIT-THRUST VECTOR CONTROL.629.png

2 DOF
Torsion Shaft Kit

EMB-KIT TORSION SHAFT 1DOF.bip.622.png
EMB-KIT TORSION SHAFT 1DOF.bip.619.png
EMB-KIT TORSION SHAFT 1DOF.bip.620.png
EMB-KIT TORSION SHAFT 1DOF.bip.621.png

3 DOF
Torsion Shaft Kit

EMB-KIT TORSION SHAFT 2DOF.623.png
EMB-KIT TORSION SHAFT 2DOF.612.png
EMB-KIT TORSION SHAFT 2DOF.616.png
EMB-KIT TORSION SHAFT 2DOF.615.png
EMB-KIT TORSION SHAFT 2DOF.614.png

Real-Time Controller

Our kits are designed to work with our DAQs, but can be easily interfaced with other DAQs and microcontrollers.
We use premium components with standard electrical signals.
