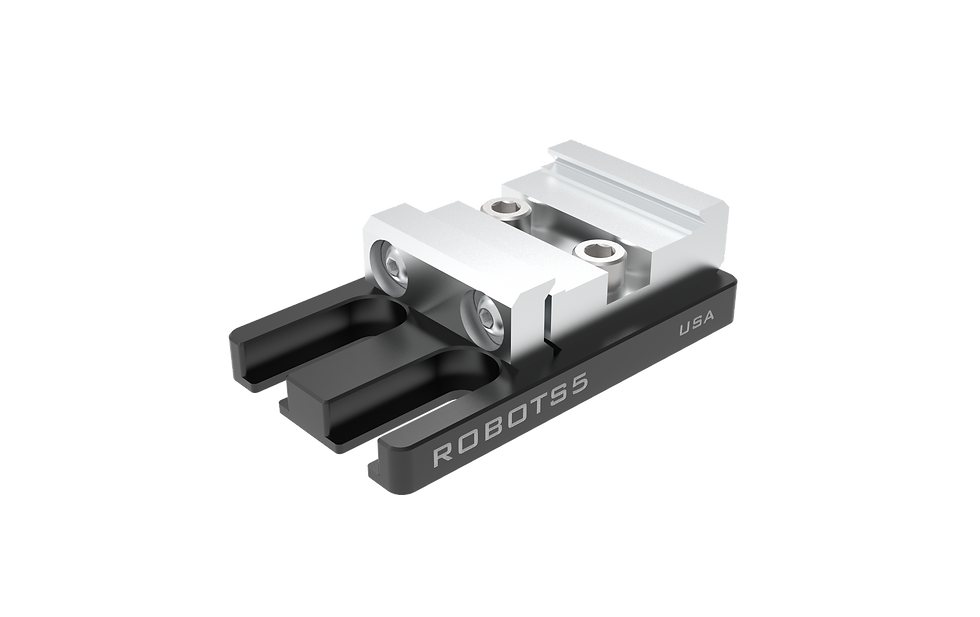

The EMB-Mounting Plate is a key component of our EMB System. It consists of a base plate with slots and a dovetail clamp. The slots allow the user to precisely position and secure with two fasteners (either M6 or 1/4"-20, depending on your breadboard) to a breadboard. The dovetail clamp interfaces with our EMB modules on any of the dovetail profiles and allows for translational adjustment until the clamp is closed. Two M4x0.7 fasteners are used to clamp the dovetail.

Note that the dovetail clamp can be separated from the base plate by removing the two M6 fasteners. This might be required if the user wants to flip the dovetail clamp so the M4x0.7 fasteners are on the opposite side of the slots, for example if there's no access to the fasteners in one side.

Key features:

  • Anodized aluminum machined plate and clamp

  • All fasteners included

  • Made in the USA

EMB-MOUNTING PLATE
$95

To attach two in-line shafts, this zero backlash constant velocity helical coupler is recommended. This coupler provides a small misalignment compensation.

Note: we strongly recommend to never use rigid couplers, as it will damage the bearings of our EMB modules.

Key features:

  • Anodized aluminum

  • Zero backlash

  • Constant velocity

  • Helical type, split hub

  • Max Angular offset: 5 degrees

  • Max Lateral offset: 0.25 mm

  • Made in the USA

EMB-SHAFT COUPLER
$45

This is a premium aluminum knob, with knurled surface and line indicator. The 6 mm bore fits the shaft of our EMB modules. We include a 6"-32 soft tip screw (brass tip) to avoid shaft damage.

A typical application is to mount to the encoder or potentiometer modules and use as input/reference in a control system.

Key features:

  • Black anodized aluminum

  • 6mm bore

  • Soft tip setscrew included

  • Made in the USA

EMB-KNOB
$25

The EMB-Rotary Inertia is mounted to a rotary shaft of our EMB modules to add an inertia load.

It fastens to either the Flange Shaft Collar or the Flange Shaft Collar MXL via three M3x0.5 fasteners.

Key features:

  • Machined brass

  • Bore: 6mm

  • Diameter: 62.0 mm

  • Thickness: 12.0 mm

  • Three M3x0.5 fasteners included

  • Made in the USA

EMB-ROTARY INERTIA
$125

This clamp is used to add further capability to EMB, than standard mechanical components such as gears and pulleys. It allows the user to mount custom components, for instance cams and linkages, to the face of the shaft collar.

There are three M3x0.5 holes and three M3 clearance holes on a 28.0 mm bolt circle.

Key features:​

  • Anodized aluminum

  • Split clamp

  • Three M3x0.5 holes

  • Three M3 clearance holes

  • Made in the USA

EMB-FLANGE SHAFT COLLAR
$85

EMB-FLANGE SHAFT COLLAR MXL
$85

This aluminum flange shaft collar is based on an MXL pulley, with 60 teeth. It provides superior clamping than the EMB-Flange Shaft Collar, as it uses Fairloc® clamp. There are three M3x0.5 holes and three M3 clearance holes on a 28.0 mm bolt circle.

This clamp is used to add further capability to EMB, than standard mechanical components such as gears and pulleys. It allows the user to mount custom components, for instance cams and linkages, to the face of the shaft collar.

Key features:

  • Belt Pitch: MXL

  • 60 Teeth

  • Anodized aluminum

  • Fairloc®

  • Three M3x0.5 holes

  • Three M3 clearance holes

  • Made in the USA

​

Note: Fairloc® is a registered trademark of Designatronics.

This sensor cable has M12, 5-pole connectors on both sides (Male and Female). It plugs directly to our EMB sensor modules and the EMB-DAQ1.

Two lengths are offered, 1 m (3.2 ft) and 3 m (9.8 ft). We strongly recommend using shorter cable lengths (1 m) to improve signal integrity, especially for analog signals (potentiometer).

We also offer 4-pole version cable. Note, using a 4-pole cable won't supply the encoder Index signal, since the center pin of the 5-pole connector won't be connected.

Key features:

  • Length: 1 m or 3 m

  • # of poles: 4 or 5

  • Made in the USA or Germany

EMB-SENSOR CABLE AXIAL
$25~$40 (depends on choice)

This sensor cable has an M12, 5-pole connector on one end and free leads (pigtail) on the other.

The M12 plugs directly to our EMB sensor modules and the pigtail allows the user to make connect to the EMB-DAQ2 or other DAQ/board/shield.

The user can cut the cable to length to best fit the application. We strongly recommend using shorter cable lengths to improve signal integrity, especially for analog signals (potentiometer).

We also offer 4-pole version cable. Note, using a 4-pole cable won't supply the encoder Index signal, since the center pin of the 5-pole connector won't be connected.

Key features:

  • Length: 2 m (4-pole) or 3 m (5-pole)

  • # of poles: 4 or 5

  • Made in the USA or Germany

EMB-SENSOR CABLE PIGTAIL
$20~$35 (depends on choice)

This sensor cable has a right angle  M12, 5-pole connector on one end and free leads (pigtail) on the other.

The M12 plugs directly to our EMB sensor modules and the pigtail allows the user to make connect to the EMB-DAQ2 or other DAQ/board/shield.

The user can cut the cable to length to best fit the application. We strongly recommend using shorter cable lengths to improve signal integrity, especially for analog signals (potentiometer).

We also offer 4-pole version cable. Note, using a 4-pole cable won't supply the encoder Index signal, since the center pin of the 5-pole connector won't be connected.

Key features:

  • Length: 2 m (4-pole) or 3 m (5-pole)

  • # of poles: 4 or 5

  • Made in the USA or Germany

EMB-SENSOR CABLE RIGHT ANGLE
$15~$25 (depends on choice)

EMB-GEAR 0.5 MOD SET
Contact us for quote

This set includes five 0.5 Mod gears to be used our EMB modules. Each gear has a stainless steel Fairloc® hub. We can also supply gears with different number of teeth, from 28 to 186.

We also offer this kit with setscrews, instead of Fairloc®, but we strongly advise against the use of setscrews, as a clamp-style mount is far superior. Unlike setscrews, Fairloc® won't damage the shafts.

Key features:

  • Module: 0.5

  • Bore: 6 mm, Fariloc®

  • Hub material: Stainless Steel

  • Gear material: Acetal

  • Tooth width: 5 mm

  • Number of teeth: 30, 60, 72, 90, 120

  • Acrylic base plate

  • Made in the USA

​

Note: Fairloc® is a registered trademark of Designatronics.

EMB-GEAR 0.8 MOD SET
Contact us for quote

This set includes five 0.8 Mod gears to be used our EMB modules. Each gear has a stainless steel Fairloc® hub. We can also supply gears with different number of teeth, from 20 to 124.

We also offer this kit with setscrews, instead of Fairloc®, but we strongly advise against the use of setscrews, as a clamp-style mount is far superior. Unlike setscrews, Fairloc® won't damage the shafts.

Key features:

  • Module: 0.8

  • Bore: 6 mm, Fariloc®

  • Hub material: Stainless Steel

  • Gear material: Acetal

  • Tooth width: 5 mm

  • Number of teeth: 20, 36, 50, 66, 84

  • Acrylic base plate

  • Made in the USA

​

Note: Fairloc® is a registered trademark of Designatronics.

EMB-GEAR 1.0 MOD SET
Contact us for quote

This set includes five 1.0 Mod gears to be used our EMB modules. Each gear has a stainless steel Fairloc® hub. We can also supply gears with different number of teeth, from 15 to 100.

We also offer this kit with setscrews, instead of Fairloc®, but we strongly advise against the use of setscrews, as a clamp-style mount is far superior. Unlike setscrews, Fairloc® won't damage the shafts.

Key features:

  • Module: 1.0

  • Bore: 6 mm, Fariloc®

  • Hub material: Stainless Steel

  • Gear material: Acetal

  • Tooth width: 5 mm

  • Number of teeth: 18, 30, 40, 50, 60

  • Acrylic base plate

  • Made in the USA

​

Note: Fairloc® is a registered trademark of Designatronics.

This set includes 3 pulleys and 3 belts to be used our EMB modules. The pitch of the pulleys and belts is MXL, with 6 mm belt width. We can also offer GT2 and GT3.

Different number of grooves and belt teeth are also available.

Key features:

  • Belt Pitch: MXL

  • Pulley bore: 6 mm, Fariloc®

  • Three aluminum pulleys: 18 grooves, 36 grooves, 72 grooves

  • Three belts: 80 teeth, 110 teeth, and 140 teeth

  • Acrylic base plate

  • Made in the USA

​

Note: Fairloc® is a registered trademark of Designatronics.

EMB-PULLEY MXL SET
$195

This kit includes tools used to work with EMB modules and assemblies.

Key features:

  • Anodized aluminum stand with rubber feet

  • Five hex screwdrivers, sizes: 1.5, 2.0, 2.5, 3.0, 4.0 mm

  • One flat screwdriver, size: 2.0 mm

  • Screwdrivers made in Germany

  • Made in the USA

EMB-TOOL KIT
$80

These shafts can be used to study the effect of a flexible shaft in a plant. Typical examples are found on Dynamic Systems and Control textbooks.

Three materials are offered, ABS, Acetal, Nylon, each with different mechanical properties. The standard offering length is 300mm, but other lengths are available.

Two Helical shaft couplers are used to mount the flexible shaft to EMB modules.

Key features:

  • Plastic rod options: ABS, Acetal, Nylon

  • Rod Diameter: 6mm (solid rod)

  • Length: 300 mm (other lengths available, from 100 mm to 500 mm)

  • Made in Japan

EMB-FLEXIBLE SHAFT
$20~$40 (depends on choice)

For a quote or to place an order, contact us.
